Name: PVC Insulated And Sheathed Flat Cable H03VVH2-F H05VVH2-F CE/TUV/VDE BS STANDARD
Brand: Ningbo Youkoy Maunufacture & Trading Co.,Ltd
SKU: H03VVH2-F H05VVH2-F
Price: Negotiable USD
Availability: InStock

Home Products Cables

PVC Insulated And Sheathed Flat Cable H03VVH2-F H05VVH2-F CE/TUV/VDE BS STANDARD

Product Details:

Place of Origin:	CHINA
Certification:	CE/TUV/VDE
Model Number:	H03VVH2-F H05VVH2-F

Payment & Shipping Terms:

Minimum Order Quantity:	100 ROLLS
Price:	NEGOTIATED
Packaging Details:	STANDARD EXPORT CARTON , CUSTOMIZED
Delivery Time:	30DAYS UPON RECEIPT DEPOSIT
Payment Terms:	L/C, T/T
Supply Ability:	100000 METERS

Contact Now

Detailed Product Description

Operating Voltage::	300/300V 300/500V	Insulation Resistance::	> 20 Gohm X Cm
Movable Installation::	12 X Cable Diameter	Fixed Installation::	40°C To +70°C
Movable Insalltion::	-5°C To + 80°C	Oil Resistantfl:	IEC 60332.1/the HD 405.2 And VDE 0207-4

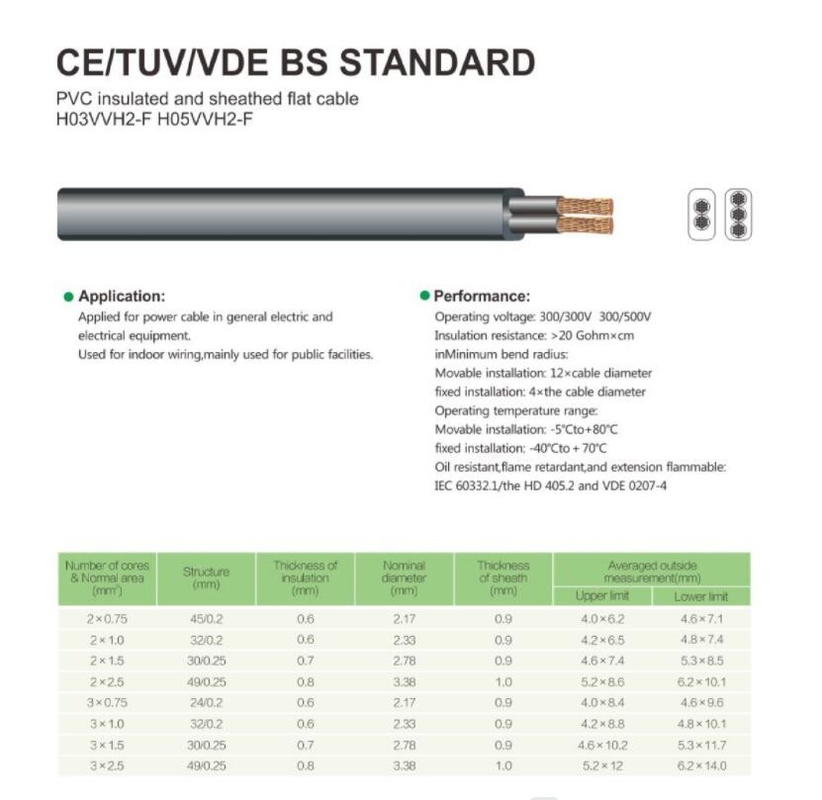

PVC Insulated And Sheathed Flat Cable H03VVH2-F H05VVH2-F CE/TUV/VDE BS STANDARD

●Performance:
Operating voltage: 300/300V 300/500V
Insulation resistance. > 20 Gohm x cm
inMinimum bend radius:
Movable installation: 12 x cable diameter
fixed installation: 4 x the cable diameter
Operating temperature range.
Movable installation: -5°C to + 80°C
fixed installation: 40°C to +70°C
Oil resistant,flame retardant,and extension flammable:
IEC 60332.1/the HD 405.2 and VDE 0207-4

●Application:
Applied for power cable in general electric and electrical equipment.
Used for indoor wiring.mainly used for public facilities.
