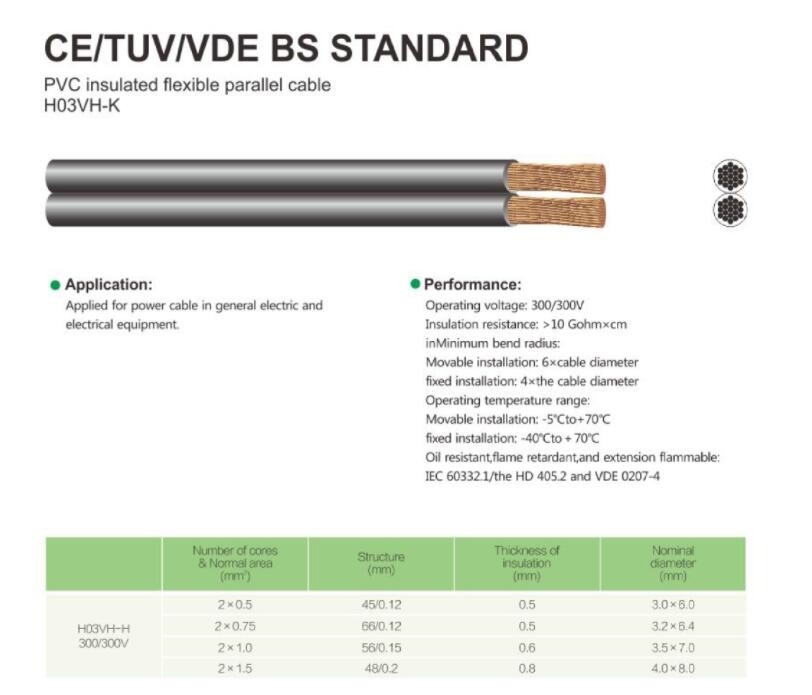

Name: PVC Insulated Flexible Parallel Cable H03VH-K CE/TUV/VDE BS STANDARD
Brand: Ningbo Youkoy Maunufacture & Trading Co.,Ltd
SKU: H03VH-K
Price: Negotiable USD
Availability: InStock

Home Products Cables

PVC Insulated Flexible Parallel Cable H03VH-K CE/TUV/VDE BS STANDARD

Product Details:

Place of Origin:	CHINA
Certification:	CE/TUV/VDE
Model Number:	H03VH-K

Payment & Shipping Terms:

Minimum Order Quantity:	100 ROLLS
Price:	NEGOTIATED
Packaging Details:	STANDARD EXPORT CARTON , CUSTOMIZED
Delivery Time:	30DAYS UPON RECEIPT DEPOSIT
Payment Terms:	L/C, T/T
Supply Ability:	100000 METERS

Contact Now

Detailed Product Description

Operating Voltage::	300/300V	Insulation Resistance::	> 10 Gohm X Cm
Movable Installation::	6 X Cable Diameter	Fixed Installation::	4 X The Cable Diameter
Movable Insalltion::	-5°C To+70°C	Fixed Installation::	-40°C To +70°C
Oil Resistantflame Retardant,and Extension Flammable::	IEC 60332.1/the HD 405.2 And VDE 0207-4

Fixed Installing Cables BS-6181Y CE/TUV/VDE BS STANDARD

●Performance:
Operating voltage: 300/300V
Insulation resistance: > 10 Gohm x cm
inMinimum bend radius:
Movable installation: 6 x cable diameter
fixed installation: 4 x the cable diameter
Operating temperature range:
Movable insalltion: -5°C to+70°C
fixed installation: -40°C to +70°C
Oil resistantflame retardant,and extension flammable:
IEC 60332.1/the HD 405.2 and VDE 0207-4

●Application:
Applied for power cable in general electric and electrical equipment.

PVC Insulated Flexible Parallel Cable H03VH-K CE/TUV/VDE BS STANDARD 0
