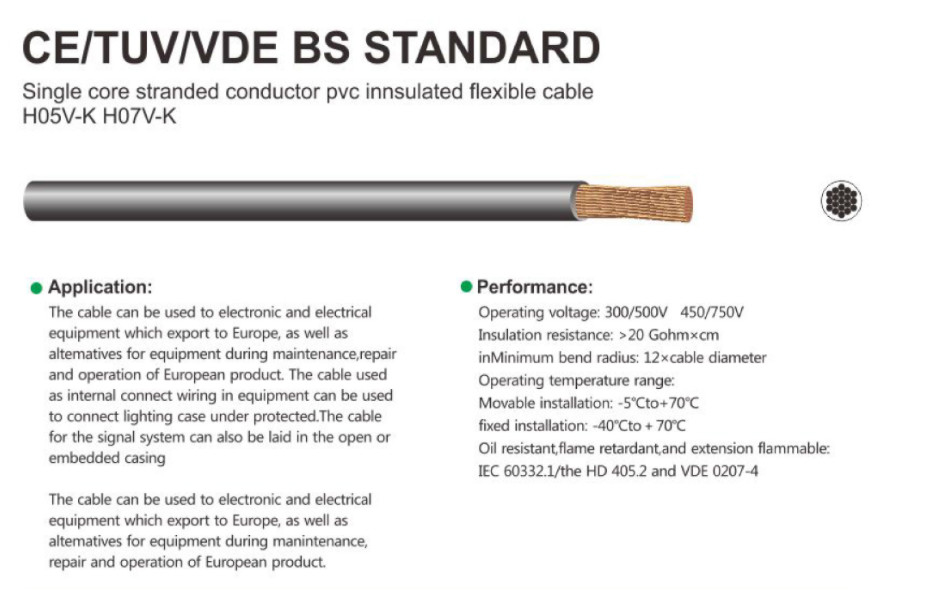

Single Core Stranded Conductor Pvc Innsulated Flexible Cable CE/TUV/VDE BS STANDARD

Single Core Stranded Conductor Pvc Innsulated Flexible Cable CE/TUV/VDE BS STANDARD

●Performance:

Operating voltage: 300/500V 450/750V
Insulation resistance:>20 Gohmxcm
inMinimum bend radius:12xcable diameter
Operating temperature range:
Movable installation: -5*Cto+ 70°C
fixed installation: -40°Cto + 70°C
Oil resistant,flame retardant and extension flammable:
IEC 60332.1/the HD 405.2 and VDE 0207-4

●Application:
The cable can be used to electronic and electrical equipment which export to Europe, as well as altematives for equipment during maintenance,repair and operation of European product. The cable used as internal connect wiring in equipment can be used to connect lighting under protected.The cable for the signal system can also be laid in the open or embedded casing

The cable can be used to electronic and electrical equipment which export to Europe, as well as altematives for equipment during manintenance,repair and operation of European product.
